Ready to produce in 5 minutes.
The hardest job to fill and the first to cause injuries: hand it to a FANUC collaborative palletizer, ready on delivery. No cage, no integrator, no programming, with training and setup possible before delivery.
40 kg
Max payload
8/min
Max speed
5 min
Full installation
8 years
FANUC maintenance-free
Technical specifications
Robot
FANUC CRX-30iA
Max payload
40 kg
Pallet height
Up to 2,200 mm (86 in)
Max speed
8 cycles / min
Footprint
Same as one operator workstation
FANUC maintenance
8 years maintenance-free
Food-grade version
NSF H1 grease and white USDA epoxy (option)
Coating
White USDA epoxy (option)
Load types
Boxes, bags, pails
Installation
5 min
Protection rating
IP67 (robot)
Safety
ISO 10218-1/2, ISO/TS 15066
Stations
2 pallets, each with its own recipe
Pallets
GMA 48×40, 48×48, EPAL, EUR, CHEP or custom
Patterns
Generated automatically, plus a preinstalled library
Slip sheets
On the pallet or between layers
Labels
Automatically turned to face outward on the pallet
Integration
PackML states, OPC UA PackTags as an option
Mobile
The palletizer stands on its own base, with no floor anchoring. Slide a pallet jack or forklift forks underneath and move it to another line whenever production calls for it.
With a pallet jack
With a forklift
No drilling, no floor work.
Move it with the equipment already in your plant.
Plug it back in, recall the recipe in the software and production resumes.
Video
Why Probot
The robot lifts boxes up to 40 kg, at 8 cycles per minute. Your employees move on to higher-value work.
A single palletizer moves by pallet jack or forklift from one line to another, as your volumes require.
Create the recipe yourself in the free app, in 4 steps and without a single line of code.
The AI assistant guides the operator to clear common stops on their own: fewer night calls, and a maintenance team free for other work.
Each employee trains on their own in the app, with tutorials narrated in 10 languages, even before delivery.
Plugged in within 5 minutes without disrupting your production, and 8 years maintenance-free from FANUC: paid back in under 18 months.
Safety
Force sensors on every axis and an automatic stop on contact: the palletizer works next to your employees, with no cage, in the space of a single operator. Compliant with ISO 10218-1/2 and ISO/TS 15066.
Exclusive technology
Designed and built by Probot, compatible with FANUC robots. The gripper adapts to your products for optimal handling.
Quick changeover for your product types and box formats.
Suction cups for a secure grip on cardboard, plastic or smooth surfaces.
High payload capacity to handle your heaviest products without compromise.
Applications
IP67 robot, easy to wash down. NSF H1 grease and white USDA epoxy as options, Ecolab-certified paint and optional stainless steel hardware.
Exceptional precision and regulatory compliance. Gentle handling of sensitive products.
Adaptable and reprogrammable. Flexible integration into any existing production setup.

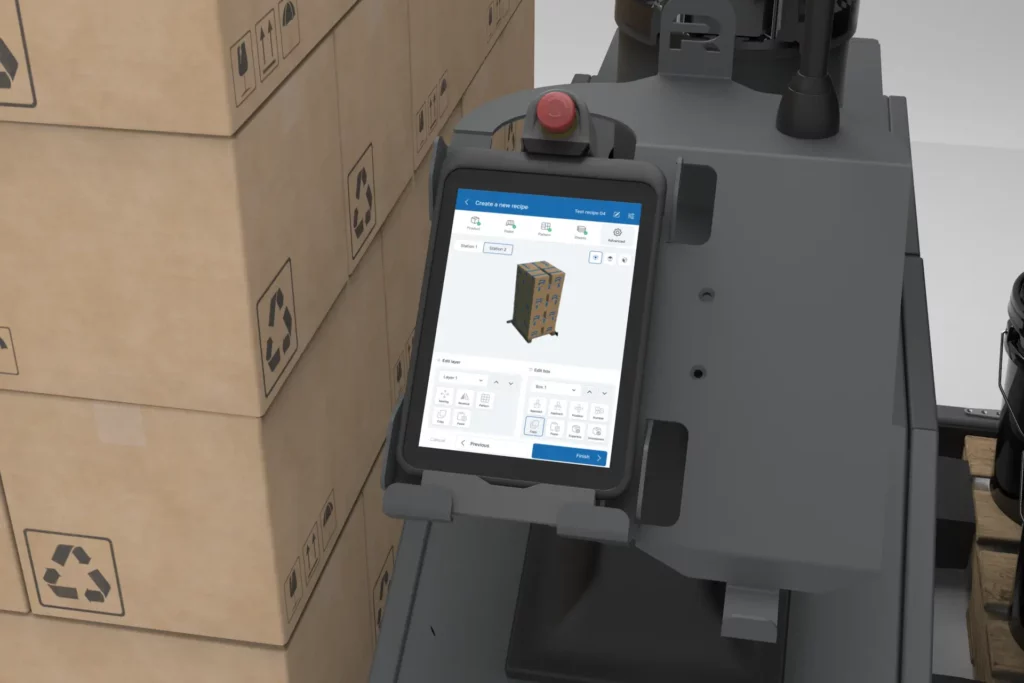

Probot Palletizer software
Without a single line of code. The app is free: in Simulation mode, create your recipes and train your operators before delivery, then transfer the recipes to the robot when it arrives.
4
Steps to create a recipe
0
Lines of code to write
2
Stations, each with its own recipe
11,760
Alarms known to the AI assistant
Operator Assist suggests fixes for common stops, without waiting for maintenance or a supervisor. Included with the maintenance plan.
Tutorials narrated in 10 languages, designed for the night shift, without waiting for a trainer.
Stop causes and durations, throughput: everything you need to track your OEE. Reports by email or USB key.
From order to production
Two charts on the same timeline, from order to payback.
With the free app, your operators learn while the palletizer is on its way. When a new operator joins, they train in the app: the dip is small and the recovery fast.
Probot produces from delivery, with no integration period, and an operator change only flattens the curve. Elsewhere, installation and retraining widen the gap before the machine pays for itself.
Illustrative charts, not to scale. Lead times and return on investment vary with each project.
Frictionless deployment
1
Analysis of your needs, your space and your production goals.
2
Custom solution: gripper, palletizing pattern, integration.
3
Plug in the palletizer and transfer your ready-made recipes: in production in 5 minutes.
4
Operator training, performance monitoring and ongoing support.
Several federal and provincial government programs can fund a significant part of your automation investment. We help you check your eligibility.
Testimonials
★★★★★
“The installation was quick, as promised. Our operators were up and running very fast. The ROI came much faster than expected.”
★★★★★
“FANUC reliability combined with Probot’s expertise allowed us to eliminate line stoppages caused by palletizing. An investment that pays for itself quickly.”
★★★★★
“With the labor shortage, the Probot palletizer allowed us to keep up our pace without compromising quality. The footprint is truly minimal.”
FAQ
What are the advantages over traditional palletizers?
Our collaborative palletizer eliminates the need for a safety cage, installs in 5 minutes instead of several weeks, and costs significantly less. Flexible programming allows quick changeovers, and its minimal footprint requires no layout changes.
Can the palletizer run without a safety cage?
Yes. The FANUC CRX-30iA is a certified collaborative robot with force sensors on every axis. It detects contact and stops instantly, in compliance with ISO 10218-1/2 and ISO/TS 15066.
How long does it take to train our operators?
No robotics training is required. Your operators learn in the app, with guided tutorials narrated in 10 languages. With Simulation mode, they can even learn before the palletizer is delivered. Probot also provides training during installation.
What types of products can it handle?
Cardboard boxes, bags, pharmaceutical jars, trays and more, up to 40 kg. The gripper is customized for your specific products for optimal handling.
How does it integrate into our existing line?
Compact footprint and modular design, no layout changes required. Our engineers plan the integration in close collaboration with your team.
Are there grants for this kind of investment?
Yes, several federal and provincial programs offer financial assistance for industrial automation. See our dedicated page or talk directly to our experts.
See it palletize your boxes: a 30-minute demo, no commitment. Our experts will also review your needs and your eligibility for grants.
📍 8895 Rue des Cordiers, Suite 300, Lévis, QC, Canada
